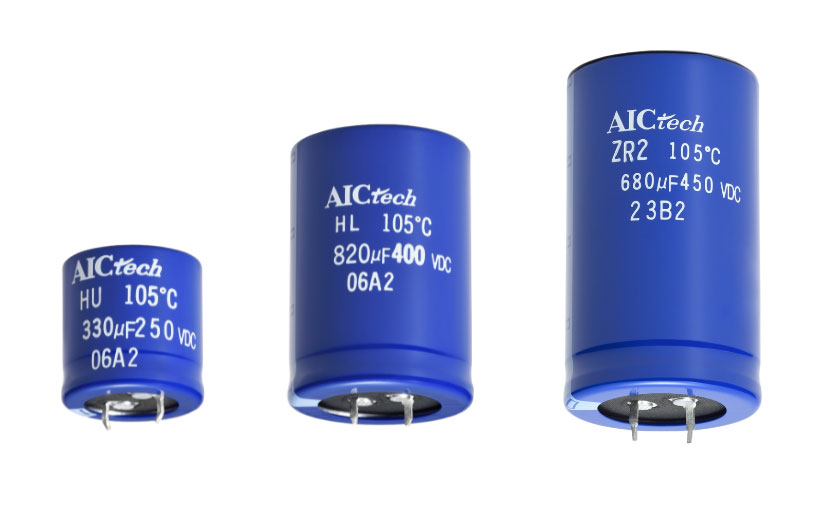

Snap Mount Type Aluminum Electrolytic Capacitor

About AIC tech Product

At AIC Tech Inc., we offer Snap Mount (Snap In) Type Aluminum Electrolytic Capacitors designed for high reliability and performance in power electronics. These capacitors provide excellent durability with long life spans, operating in a wide temperature range, and supporting high ripple current applications. They are ideal for use in various industrial and commercial environments, ensuring stable and efficient operation of electronic systems.

Main features

Useful Life time [h]	2,000 to 15,000
Operating Temperature range [℃]	-40 (-25) to +105
Operating voltage [V.DC]	16 to 600
Capacitance range [µF]	56 to 33,000
Case size	φ22×25L to φ40×101L (*Please contact φ46 and φ51)
Major applications	Power supplies, frequency converters or UPS systems Converters in photovoltaic and wind power plants

Standard product

In the Standard Series, we offer capacitors designed for reliable performance in typical applications. These models feature standard and high-temperature options, providing a balance of capacitance, voltage, and durability for a wide range of industrial and commercial uses.

Type / Series		Feature	Useful Life time [h]	Operating Temperature range [℃]	Standard product	Small-sized product	Operating voltage[V.DC]	Capacitance range[µF]
Standard	HP3	Standard	4,000	-40〜+85	◯		16〜450	120〜33,000
	HU3	105℃, Standard	4,000	-40〜+105	◯		16〜450	68〜33,000
	HU UPGRADE!	105℃, Small-sized	4,000	-40(-25)〜+105		◎	200〜550	82〜2,200
	ZL UPGRADE!	105℃, Small-sized	5,000	-40(-25)〜+105		◯	200〜550	82〜2,700

3D CAD Data

Reliability Data

Long-life product

Our Long-Life Series capacitors are engineered for extended use, with lifespans reaching up to 15,000 hours. These models are ideal for applications requiring consistent performance over longer periods, with options for both standard and high-temperature environments.

Type / Series		Feature	Useful Life time [h]	Operating Temperature range [℃]	Standard product	Small-sized product	High-reliability product	Operating voltage[V.DC]	Capacitance range[µF]
Long -life	HL UPGRADE!	105℃, Small-sized	8,000	-40(-25)〜+105		◯	◯	200〜500	56〜2,700
	YL	105℃, Small-sized	10,000	-25〜+105		◯	◯	400〜500	82〜680
	XL1	105℃	15,000	-40〜+105	◯		◯	200〜450	56〜1,800

3D CAD Data

Reliability Data

for Special applications

The Special Application Series includes capacitors tailored for specific needs such as high ripple current, large capacitance, and ultra-small sizes. These models are designed to meet the demands of unique industrial and commercial applications, ensuring robust and efficient operation.

Type / Series		Feature	Useful Life time [h]	Operating Temperature range [℃]	Small-sized product	High-reliability product	Operating voltage[V.DC]	Capacitance range[µF]
Special application	UW	Ultra small	2,000	-10〜+105	◎		450	210〜1,150
	CU	105℃, side-vent type, High-ripple current	4,000	-25〜+105		◯	400〜500	120〜1,200
	ZR2 NEW!	High-ripple current	5,000	-25〜+105		◯	400, 450	180〜1,500
	ZR	High-ripple current	5,000	-40〜+105	◯	◯	400, 450	150〜680
	PS2 NEW!	High-ripple current, large capacitance	4,000	-40(-25)〜+85		◯	200〜600	180〜4,700
	US2 NEW!	High-ripple current, large capacitance	4,000	-40〜+105		◯	200〜450	330〜4,700
	DH	Charge-Discharge	5,000	-25〜+105		◎	400, 450	82〜680
	HW UPGRADE!	Flash	ー	-20〜+55	◎		330〜450	320〜3,800
	HS UPGRADE!	Flash	ー	-20〜+55	◯		330〜450	300〜3,100

3D CAD Data

Reliability Data

FAQs

What quality standards do these capacitors meet?

We ensure that our Snap Mount (Snap In) Type Aluminum Electrolytic Capacitors comply with rigorous quality standards, including JIS C 5101-4, to guarantee high reliability and performance in various industrial applications.

Can these capacitors be customized for specific applications?

Yes, we offer customization options for specific applications. You can consult with us to discuss your unique requirements and have capacitors tailored to meet your needs.

What is the lead spacing on a snap-in capacitor?

The lead spacing on our snap-in capacitors typically ranges from 10 mm to 35 mm, depending on the specific model and application requirements.

Are the capacitors RoHS compliant?

Yes, our Snap Mount (Snap In) Type Aluminum Electrolytic Capacitors are RoHS compliant, ensuring they meet environmental and safety standards for the restriction of hazardous substances.

Are these capacitors suitable for power supply applications?

Yes, our Snap Mount (Snap In) Type Aluminum Electrolytic Capacitors are highly suitable for power supply applications, offering high ripple current capability, long life, and reliable performance across a wide range of voltages and capacitance values.
